| Hlutanúmer : | EEE-FT1E330AR |
|---|---|
| Framleiðandi / Vörumerki : | Panasonic |

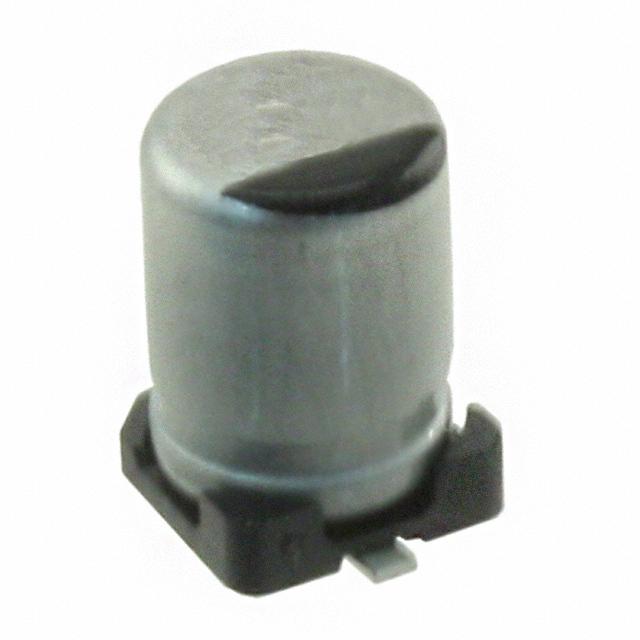

| Lýsing : | CAP ALUM 33UF 20% 25V SMD |
| RoHs Staða : | Leiða frjáls / RoHS samhæft |
| Magn í boði | 437064 pcs |
| Gagnablöð | 1.EEE-FT1E330AR.pdf2.EEE-FT1E330AR.pdf3.EEE-FT1E330AR.pdf4.EEE-FT1E330AR.pdf5.EEE-FT1E330AR.pdf |
| Spennaverðlaun | 25V |
| Tolerance | ±20% |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Stærð / Mál | 0.157" Dia (4.00mm) |
| Röð | FT |
| Ripple Núverandi @ Lágtíðni | 104mA @ 120Hz |
| Ripple Núverandi @ Hátíðni | 160mA @ 100kHz |
| Einkunnir | AEC-Q200 |
| Polarization | Polar |
| Pökkun | Tape & Reel (TR) |
| Pakki / tilfelli | Radial, Can - SMD |
| Önnur nöfn | EEEFT1E330AR PCE5004TR |
| Vinnuhitastig | -55°C ~ 105°C |
| Uppsetningartegund | Surface Mount |
| Vöktunarnæmisstig (MSL) | 1 (Unlimited) |
| Framleiðandi staðall leiðslutími | 19 Weeks |
| Ævi @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - |
| Leiða frjáls staða / RoHS staða | Lead free / RoHS Compliant |
| Hæð - sæti (hámark) | 0.240" (6.10mm) |
| ESR (jafngildi röð mótspyrna) | 850 mOhm @ 100kHz |
| nákvæm lýsing | 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 850 mOhm @ 100kHz 2000 Hrs @ 105°C |
| Rýmd | 33µF |
| Umsóknir | Automotive |
Panasonic
